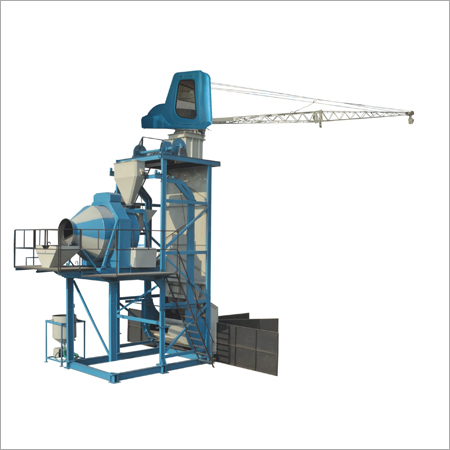

Boom Placer

Boom Placer
Boom Placer
Product Code : 06
Product Description

With massive experience and expertise, we are able to manufacture and export Boom Placer. Made of superior quality raw materials, these products have a sturdy and strong construction. These products are widely used in different civil engineering applications for making bridges, buildings and roads. Known for their high and delay free performance, these products have gained a high demand among the clients. Owing to their longer service life and less maintenance, these products can be used for longer time period. Boom Placer is delivered to the clients in a designated time span owing to our wide delivery network.

Other details:

Features

  • Tilting Type Skip Bucket
  • Pitiless Foundation
  • Water / Admixture Dozing System
  • Specially Designed Cabin with Control Panel

Technical Specification

Specification

UBS 20R-09 (Reversible)

UBS 30R-09 (Reversible)

UBS 30 P-05 (Pan)

Batching Plant Capacity

20 Cu.M.

30 Cu.M.

30 Cu.M.

Cycle Time (Sec.)

90

90

60

Batch Capacity

500 Ltr.

750 Ltr.

500 Ltr.

Drum Capacity

750 Ltr.

1000 Ltr.

N.A.

Cycles Per Hour.

40

40

60

Feeding System Type

Boom Scrapper

Boom Scrapper

Boom Scrapper

Mixer Type

Reversible Drum Mixer

Reversible Drum Mixer

PAN

Skip Bucket Capacity

1050 Kg

1575 Kg

1050 Kg

Load Cell Capacity (Aggregate Weighing)

1500 Kg x 2 Nos.

1500 Kg x 2 Nos.

1500 Kg x 4 Nos.

Water Tank Capacity

250 Ltr.

250 Ltr.

150 Ltr.

Lubrication

Centralise Lubrication Pump

Centralise Lubrication Pump

Centralise Lubrication Pump

Control Cabin

Thermal Insulated Cabin

Thermal Insulated Cabin

Thermal Insulated Cabin

Control Cabin Located

Ground level

Ground level

Ground level

Automation

Fully Auto / Semi Auto

Fully Auto / Semi Auto

Fully Auto / Semi Auto

Cement Feeding Screw Conveyor (Hopper Capacity)

1.5 Cu.M.

1.5 Cu.M.

1.5 Cu.M.

Load Cell Capacity (For Screw Conveyor)

1500 Kg x 2 nos.

1500 Kg x 2 nos.

1500 Kg x 2 nos.

Cement Weighing Bin Capacity

400 Kg

400 Kg

250 Kg

Discharge of Cement in mixer

Pneumatic Butter Fly Valve

Pneumatic Butter Fly Valve

Pneumatic Butter Fly Valve

Fly Ash Feeding Screw Conveyor

Optional

Optional

Optional

Printer Facility

Yes

Yes

Yes

Main Motor

10 HP

15 HP

30 HP

Skip Motor

10 HP Brake Motor

12.5 HP Brake Motor

10 HP Brake Motor

Cement Feeding System

Screw Conveyor System

Screw Conveyor System

Screw Conveyor System

Water Dozing System

Weight Based

Weight Based

Weight Based

Admixture Dozing System

Weight Based

Weight Based

Weight Based

Boom Scrapper Winch Motor

10 HP

10 HP

10 HP

Compressor Motor

5 HP

5 HP

5 HP

Total HP

50.5 HP

58 HP

63 HP

Genset Required

82 KVA

82 KVA

100 KVA
