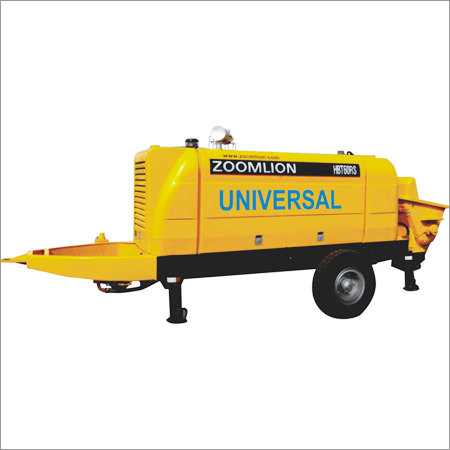

Concrete Pump

Concrete Pump
Concrete Pump
Product Code : 05
Brand Name : Universal
Product Description

Owing to the insight and expertise of our diligent team, we are able to manufacture and export Concrete Pump. These products are used in different construction and civil engineering applications for pumping out different types of concrete mixes. Equipped with a high powered motor, these products provide accurate and high performance. Acknowledged for their non-corrosive surface, these products require very less maintenance. Concrete Pump is available with us in different models as per the requirements of the clients.

Other details:


Features

  • Special hydraulic system
  • Intelligent control system
  • Large Angle Fluent Hopper Design
  • S valve ensure the smooth flow of concrete
  • Rapid concrete piston substitution
  • Low running costs
  • Hydraulic oil treatment
  • Super wear-resistant component
  • Hydraulic low/High Pressure Mode Shifting

Technical Specification

SPECIFICATION

MEASURE

HBT 40

HBT 60

Max. Theo. Output

m3 / hr.

48 / 30

75 / 45

Max. Theo. Concrete Output Pressure

Bar

50 / 100

125 / 73

Distributing Valve

NA

S valve

S valve

Cylinder: diameter ×stroke

mm

180 X 1250

200 X 1710

Hopper Capacity

L

500

600

Feeding Height

mm

1335

1400

Outlet Diameter

mm

180

180

Max. Mining Speed

r / min.

32

40

Rated power

Kw

48.6

81

Engine Model

NA

Kirloskar HA494

Kirloskar HA494

Min. speed

r / min.

600

600

Rated Speed

r / min.

2300

2300

Circuit Type

NA

Open

Open

Pumping system pressure

Bar

320

350

Distributing Pressure

Bar

190

250

Mixing System Pressure

Bar

140

140

Capacity of Hydraulic Oil Tank

L

300

600

Capacity of fuel tank

L

90

245

Max. Aggregate diameter

L

Pebble : 40, Crushed stone:40

Pebble : 40, Crushed stone:40

Diameter of delivery pipe

mm

125 x 150

125 x 150

Dimension (LxWxH)

mm

5060x2020x2035

6400x2180x2540

Total Weight

Kg

3500

6500
