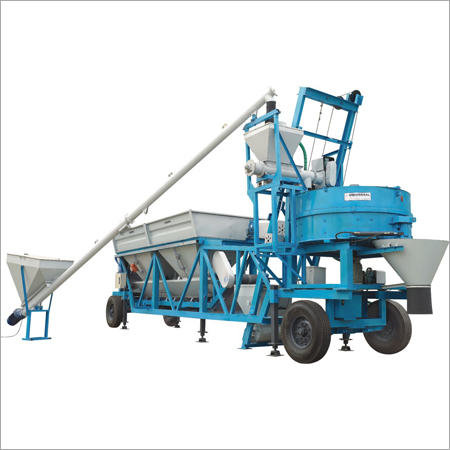

Mobile Batching Plant

Mobile Batching Plant
Mobile Batching Plant
Product Code : 03
Product Description

We are well renowned in the market as an eminent manufacturer and exporter of Mobile Batching Plant. These products are made of superior quality raw material that are collected from the better resources of the market. Known for their smooth performance, these products provide accurate mixing of cement and concrete mixes. Owing to their lightweight nature and compact size, these products are easy to move from one place to another. Mobile Batching Plant is delivered to the clients in a committed time span owing to our vast distribution network.

Other details:


Features

  • Can be used in compact places
  • Flexible system

Technical Specification

SPECIFICATION

Pan 30 Cu M/Hr

Pan 20 Cu M/Hr

Vibrated Batch Capacity

500 Ltr

350 Ltr

Output

30 Cu.M./Hr

20 Cu.M./Hr

Skip Capacity

1050 Kg

750 Kg

Main Motor

30

20

Hydraulic Power Motor

3 HP

2 HP

Main Shaft Speed

27 RPM

27 RPM

Skip Motor

10 HP

7.5 HP

Inline Hopper Feeding System

Inline Cross Bins

Storage Hopper (Nos.)

4

Storage Capacity (Gross)

12 Cu.M.

Gate Controls

Pneumatic Gates

Weighing Method

On Suspended Belt Conveyor

Weighing System

Load Cell Based Digital Weighing System

Cycle Control

Fully Automatic, with Siemens PLC Control & SCADA

Weighing Conveyor Motor

7.5 HP

Air Compressor Suggested

5 HP

Air Pressure () & FAD

12 (Kgf/cm2 & Ltr./Min)

Auto Cement Feeding System

Screw Conveyor Type

Cement Weighing Hopper Capacity

250 Kg

160

Cement Storage Hopper Capacity

800 HP

800

Water Feeding System

Automatic Digital Water Measuring

Water Tank Capacity

150 Ltr

100

Admixture Dozing System

Automatic

Total Power Required

75 HP

57

Suggested Generator Capacity

100 KVA
