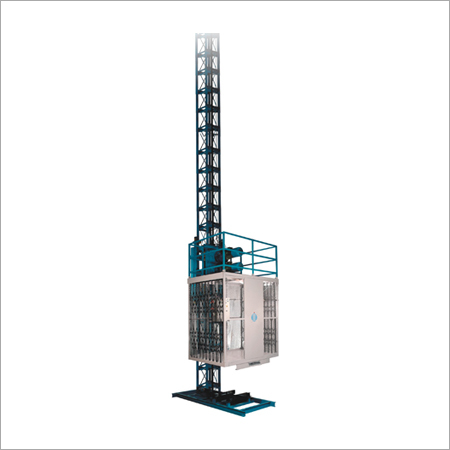

Rack & Pinion PM Lift

Rack & Pinion PM Lift
Rack & Pinion PM Lift
Product Code : 14
Product Description

Owing to the enormous experience in this domain, we have been in this field of manufacturing and exporting Rack & Pinion PM Lift. These products are used in different construction sites and high rise building for transporting different materials to different floors. Owing to their effective pulley system and high powered motors, these products are able to provide delay free performance. Rack & Pinion PM Lift is is packed in special packaging material so as ensure their non-damage transportation.

Other details:

Features

  • Safety

  • User Friendly Control Panel

  • Smooth Operation

  • Easy Erection of Mast

  • Variable Frequency Drive (VFD)

  • Safety Device

Safety Features

  • Self Braking Electrical Motors

  • Ascent & Descent Limit Switch

  • Limit Switch on Cage Entrance And Exit Doors

  • Manual Brake Release Device for Emergency Descent

  • Centrifugal Brakes Provided to Arrest Free Fall

  • Buzzer During Down Travel Start

  • Flap Arrangement for Safer Exit

  • Half Rack Provision to Avoid Overtravel

  • Lock & Key Master Switch

  • Barricade Arrangement to Protect Lift

  • Winch for Column Erection

  • Parting & Collapsible Door Option

Utilities

  • To Carry Consultants & Engineers

  • To Carry Customers

  • To Have Look At Their Flat

  • To Carry Labours & Technicians

  • To Carry Valuable Fittings & Materials

Applications

  • Chimney

  • Dam

  • Construction

  • Cement Industry

  • High Rise Building

  • Tower Boiler

Technical Specification

DESCRIPTION

SPEEDO 101

SPEEDO 10.5

SPEEDO 102

Maximum Load

1000 Kg

1500 Kg

2000 Kg

Cage Size (L x W x H)

2500 x 1300 x 2100 mm

2500 x 1700 x 2100 mm

3000 x 1300 x 2100 mm

No. of Persons

12 Nos.

18 Nos.

18 Nos.

Speed

28 Mtrs./Min.

28 Mtrs./Min.

28 Mtrs./Min.

Power

2 x 10 HP (7.5 Kw) 3 ph. 1440 RPM

2 x 12.5 HP (9.3 Kw) 3 ph. 1440 RPM

2 x 12.5 HP (9.3 Kw) 3 ph. 1440 RPM

Mast Section (Triangular / Square)

650 X 650 X 1508 mm

650 X 650 X 1508 mm

650 X 650 X 1508 mm

Mast Weight approx

98 &128 Kg

130 Kg

140 Kg

Mast Height

1508 mm

1508 mm

1508mm

Anchoring Distance

3000 or 6000 mm

6000 mm

6000 mm
