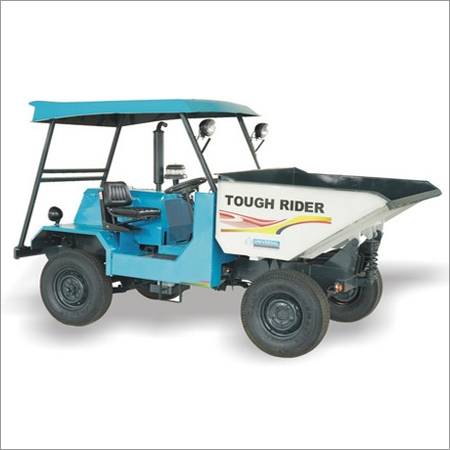

Tough Rider

Tough Rider
Tough Rider
Product Code : 07
Brand Name : Universal
Product Description


Our capabilities and mechanical know how has enabled us to manufacture and export Tough Rider. These products are used for carrying debris and construction material from one place to another. Owing to their less fuel consumption and accurate functioning, these products have gained a huge demand among our valued clients. Known for their effective performance, these products help in reducing human labor. Tough Rider is packed in special packaging material in order to avoid any damage at the time of delivery at the clients' premises.

Other details:


Features

  • Engine & Tyre Cover
  • Bumper, Parking & Brake Light and Tail Lamp
  • Joystick, Reverse Horn etc. provides comfort drive
  • Hood provided for operator's comfort
  • Highly customisable for various application
  • Best for tunnel application i.e. two way seating arrangement

Utilities

Concrete Carrying

  • The height of Tough Rider is so maintained that concrete from Reversible Mixer is directly discharged into the bucket. Its narrow & compact size enables it to reach different corners of a site where other heavy vehicles cannot.
  • Multiple Use
  • The 4x4 transmission facilitates Tough Rider to ride smoothly on tough terrain of the construction sites. Also it has the capacity to handle various materials besides concrete.
  • Towing Arrangement
  • The towing arrangement facilitates towing of other equipments such as concrete mixer, water tank etc. to various parts of the site.

Technical Specification

SPECIFICATION

MODEL 2.5 TON

MODEL 2 TON

Capacity

2.5 Ton

2 Ton

Power (Engine)

23.5 BHP Water Cooled Diesel Engine 255 DI Electric Start (2245IN)

25 HP @ 2400 RPM Twin Cylinder Water Cooled Diesel Engine

Tyres

7"x15"

7"x15"

Ground Clearance

225 mm

225 mm

Wheel Base

2150 mm

2150 mm

Dimension (LxWxH)

3780 x 1740 x 2150 mm

3700 X 1740 x 2150 mm

Weight

1600 Kg

1600 Kg

Clutch

Heavy Duty Single Plate Dry Clutch

Transmission

Heavy Duty Gear Box With Four Forward And One Reverse Gear

Turning Radius

5 Mtr.

5Mtr.

Brakes

Front Drum Brake / Rear Disc Brake (Hydraulic Single Piston)

Front Drum Brake / Hydraulic Rear Disc Brake (Single Piston Master Cylinder)

Discharge Height

2.07 Mtr.

0.6 Mtr.
