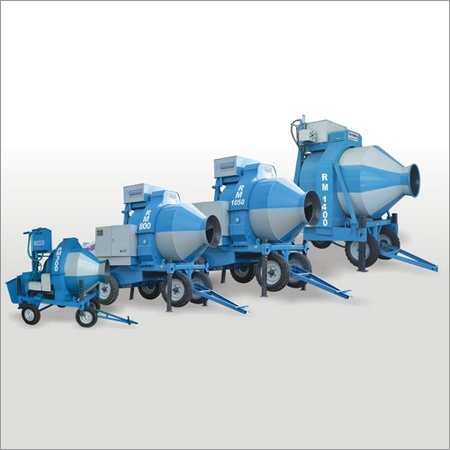

Reversible Mixer
Product Code : 02
Brand Name : Universal
Owing to the hard work and true diligence of our efficient team, we are able to manufacture and export Reversible Mixer. These products are equipped to handle the mixing of large quantities that is required fro the construction of varied buildings. Owing to their reversible movement, these products are able to mix the contents and thoroughly. Our clients appreciate these products for their longer service and potable nature. Reversible Mixer is available with us in different models and grades as per the requirements of the clients.
Other details:
FEATURES
-
Operates at -200 C to 550 C temperature
-
Fully automatic; no skilled operator required
-
Models from 300 to 1400 Liter
-
Zero vibration in Diesel operated mixer
OPTION FOR VARIOUS MODELS
-
Single Bin Digital Weighing System
-
Two Bin Digital Weighing System
-
Three Bin Digital Weighing System
-
Four Bin Digital Weighing System
-
Automised Digital Water Feeding System
-
Automised Digital Admixture Feeding System
-
Batch Printing System
-
Centralized Lubrication System
Technical Specification
Specification | RM 300 | RM 550 | RM 800E/D | RM 1050E | RM 1400 |
Hopper Capacity | 300 Liter | 550 Liter | 800 Liter | 1050 Liter | 1400 Liter |
Batch Capacity | 250 Liter | 450 Liter | 600 Liter | 750 Liter | 900 Liter |
Machine Output/ Hour | 5 Cu. M./Hr. | 7-9 Cu. M./Hr. | 10-12 Cu. M./Hr. | 12-15 Cu. M./Hr. | 17-20 Cu. M./Hr. |
Power | 5 HP (7.5 Kw) Elec. Motor | 10 HP (7.5 Kw) Elec. Motor | 10 HP (7.5 Kw) Elec. Motor / 16 HP Diesel Air Cooled Engine | 15 HP (11 Kw) Elec. Motor | 20 HP (14.96 Kw) Elec. Motor |
Water Tank Capacity | 50 Liter | 170 Liter | 170 Liter | 250 Liter | 280 Liter |
Weighing System | Load Cell Based Weighing System with Digital Display |
Hydraulic Pump | 6 lpm @ 200 bar | 23 lpm @ 200 bar | 17 lpm @ 200 bar | 23 lpm @ 200 bar | 27 lpm @ 200 bar |
Gear Ring & Roller | Accurately Machined with Gear Cutting Operation Supported by Heavy Duty Twin Rollers Guide |
Wheels | Pneumatic Wheels (4 Nos.) 4'' x 8'' | Pneumatic Wheels (4 Nos.) 6'' x 16'' | Pneumatic Wheels (4 Nos.) 6'' x 16'' | Pneumatic Wheels (4 Nos.) 6'' x 16'' | Pneumatic Wheels (4 Nos.) 7'' x 19'' |
Jack Levelling | Pin Type(3 Nos.) | Pin Type(4 Nos.) | Pin Type(4 Nos.) | Pin Type(4 Nos.) | Pin Type(4 Nos.) |
Dimensions (LxWxH) | 2910 x 1414 x 1978 mm | 3750 x 2250 x 2850 mm | 4000 x 2250 x 3100 mm | 4100 x 2350 x 3300 mm | 4500 x 2350 x 3400 mm |
Weight | 970 Kg | 2150 Kg | 2250 Kg | 2500 Kg | 2800 Kg |
Logistics | No. Of Machines | No. Of Machines | No. Of Machines | No. Of Machines | 700 No. Of Machines |
20' Container | 01 Open Top Container | 01 Open Top Container | 01 Open Top Container | 01 Open Top Container | Not to be fitted |
40' Container | 03 in High Cube | 03 in High Cube | 03 in High Cube | 03 in High Cube | 03 in High Cube with Hopper Dismantle |
