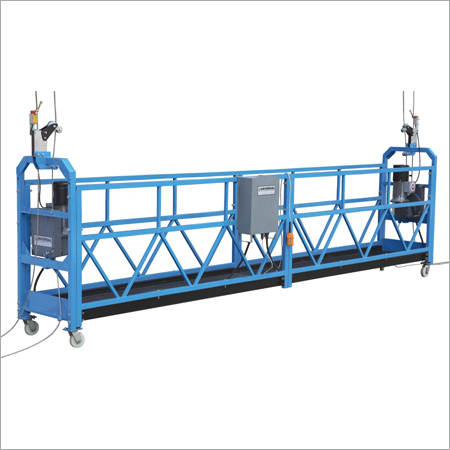

Suspended Platform

Suspended Platform
Suspended Platform
Send Inquiry
Product Code : 15
Product Description

We have the insight and expertise in this sector to manufacture and export Suspended Platform. These products have gained a high demand among the clients owing to their high and accurate performance. Known for their effective performance, these products are used at the time of painting or cleaning high rise buildings. These products have the capacity to bear heavy loads while suspended in the air. Suspended Platform is available with us in different lengths and sizes as per the requirements of the clients.

Other details:


  • Safe, Secure, Smooth & Steady Operation
  • Ideal High Rise Towers Maintenance
  • Customisable For Use Up To 300 Feet

Technical Specification

Hoist Model UHP 800

Adjusted Specification

800 Kg

Lifting Speed

8.3 + 0.5 Mtr. / Min.

Motor Power

2.2 Kw

Steel Wire Rope Diameter

8.6 mm

Safety Lock Model

Adjusted Specification

All model

Alowable Compact Force

20 KN

Adjusting Range of Rope Lock Angle


Rope Lock Distance

100 mm

Electrical Control System

Adjusted Specification

All model

Steel Wire Rope


8.6mm - 10 mm

Adjusted Suspending Platform

UHP 800 - UHP 1000

Rope Lock Assembly

Adjusted Specification

All model
